Wireless USB/HDMI

Wireless USB/HDMI

Wi-Fi Direct / Cut Your Wire / HMI
  • E1213.jpg
  • E1215.jpg
DETAIL

AI Connectivity & Cut Your Wire



Wireless E-Paper

Easy to deploy
wireless distributed  E-Paper,

compatible with EPD Server and CMS tool

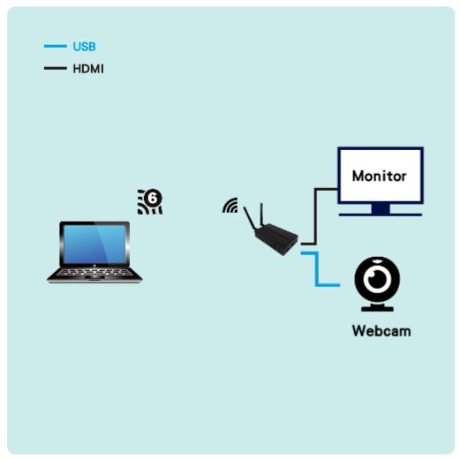

Wireless Display

Wireless expand HDMI monitor and compatible with view display setting of windows

Wireless Camera

Wireless expand Webcam and compatible with OpenCV app and Microsoft Teams

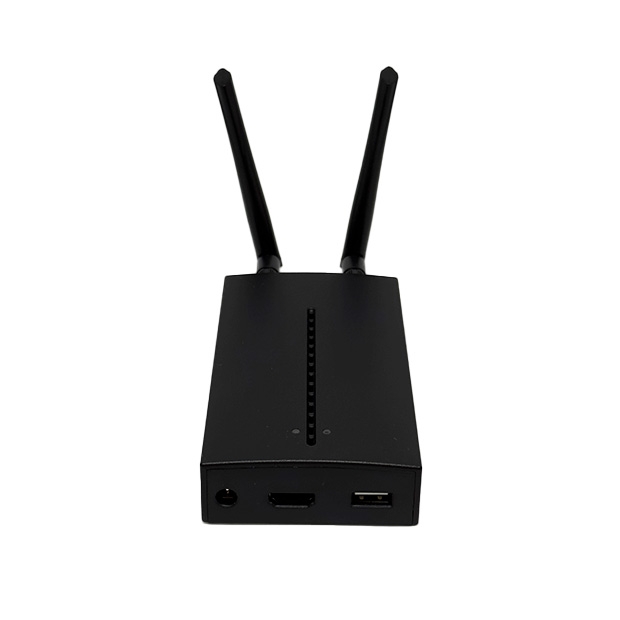

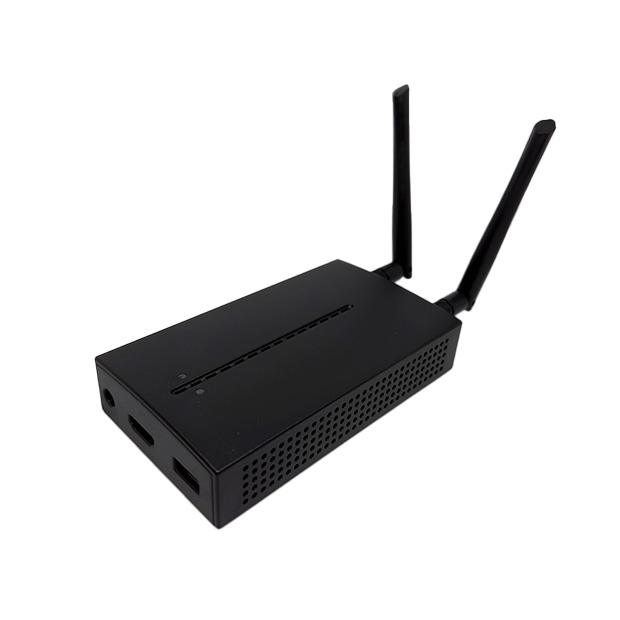

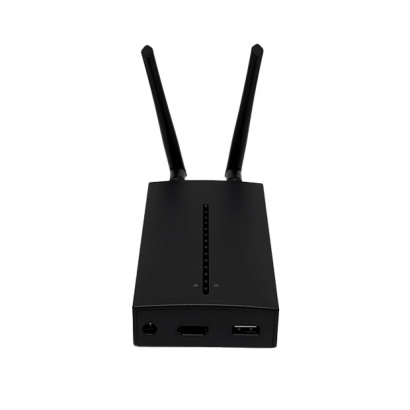

 Wireless USB/HDMI Device Server

Specification

  • Product Number : 9WPIKA020901
  • Wireless Network : IEEE 802.11 ax/ac
  • Operation Frequency : 2.4 / 5GHz
  • Antenna : 2 by 2, External diploe antenna
  • Operation Mode : Infrastructure mode
  • Expand USB Connectivity : Support USB isochronous and HID device
  • USB Power Delivery : 5V/1.5 A
  • Expand HDMI Connectivity : HDMI 1.4b Tx
  • Display Resolution : Up to 1080P/60Hz
  • Power Consumption :  6W
  • DC Jack : 12V/1A
  • Dimension : 122mm*70mm*26mm
  • Driver : Win 10/11, WHQAL approval
  • Certification : FCC
