Wi-Fi / BT

Industiral Wi-Fi 6E

Industiral Wi-Fi 6E

Wide Temperature I Roaming I Tri-Band 2.4/5/6GHz
  • 03.png
  • IMG_E1199.png
DETAIL

6GHz & Fast Roaming

Support 11 k/v/r roaming and up to 6GHz band



Wide Temperature

-10 to 80 degree working range

AI Edge Platform

Support Intel X86 and Embedded Nvidia Jetson / Nano / AGX / Orin platform

 Wi-Fi 6E Connectivity

Specification

  • Product Number : 5SAX00000004
  • Radio ASIC : Intel
  • Network Protocol : IEEE 802.11 ax/ac/n/k/v/r
  • Frequency Band : 2.4 / 5 / 6 GHz
  • Bandwidth : 20 / 40 / 80 / 160 MHz
  • Mobile Hotspot : 2.4/5GHz
  • Modulation : Up to 1024 QAM
  • Antenna : 2 by 2 (50 ohm)
  • Max PHY Rate : 2400Mbps
  • Wide Temperature : -40 to 80 degree

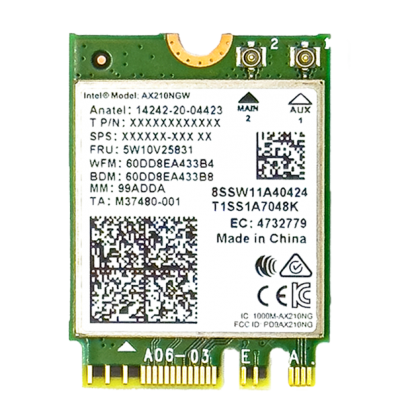

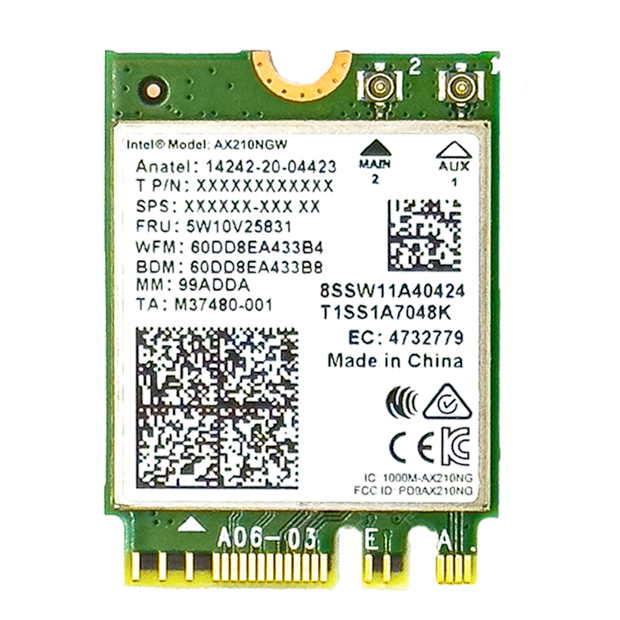

  • Board Form Factor : M.2 2230
  • System Interface : Wi-Fi ( PCIe), BT ( USB )
  • Reliability : 10 yrs, up to 100% active
  • Default Driver : Intel X86 Windows/Linux
  • Customized Driver : Nvidia Jetson Series Platform
  • Certification : FCC, CE, JP, CCC, NCC
