Wi-Fi / BT

AI Edge Wi-Fi 6E

AI Edge Wi-Fi 6E

Wide Temperature / Roaming / SoftAP / Tri-Band 2.4/5/6GHz
  • 02-1.png
  • 05.png
DETAIL
  • Edge Wi-Fi Hotspot

Support standalone 5/6GHz Soft AP, and 2.4/5 GHz concurrency

Wide Temperature

-40 to 85 degree working range

Embedded AI Edge

Support Nvidia, NXP, Rockchip network connectivity

Stable & Diverse Connection



Specification

  • Product Number : 5SI600000001
  • Radio ASIC : Infineon
  • Network Protocol : IEEE 802.11 ax/ac/n/k/v/r
  • Frequency Band : 2.4 / 5 / 6 GHz
  • Bandwidth : 20 / 40 / 80 MHz
  • Mobile Hotspot : 2.4/5/6GHz
  • Modulation : Up to 1024 QAM
  • Antenna : 2 by 2 ( 50 Ohm)
  • Max PHY Rate : 1200 Mbps
  • Wide Temperature : -40 to 85 degree

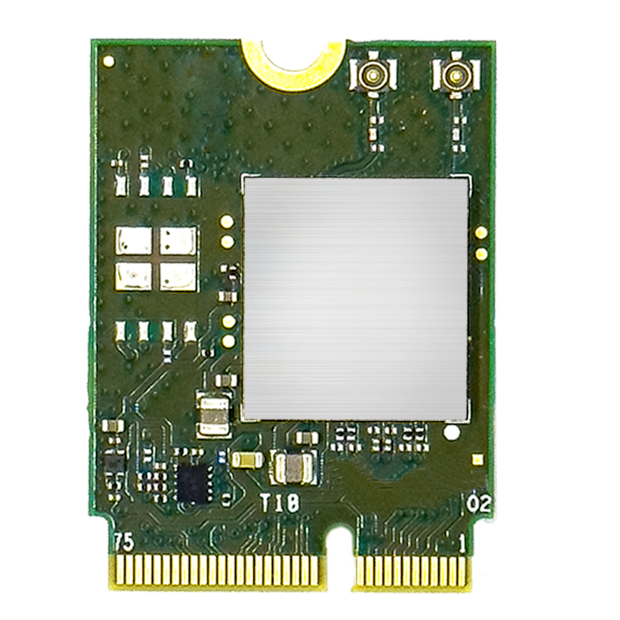

  • Board Form Factor : M.2 2230
  • System Interface : Wi-Fi ( PCIe ), BT ( UART )
  • Reliability : 10 yrs, Up to 80% active
  • Default Driver : Linux
  • Customized Driver : Nvidia Jetson Series, NXP I.MX, Rockchip
  • Certification : FCC, CE
