Wi-Fi / BT

IoT Wi-Fi 6

IoT Wi-Fi 6

Wide Temperature / SoftAP / Dual-Band 2.4/5GHz
  • 01.png
  • IMG_E1198.png
DETAIL

Edge Hotspot

Support standalone 5GHz Soft AP

Wide Temperature

-40 to 85 degree working range

AI Edge

Support AI embedded platform

AIoT Connectivity

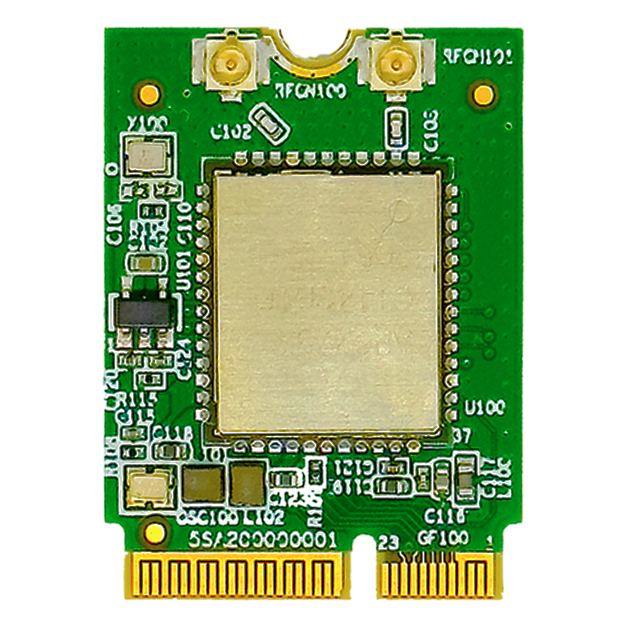

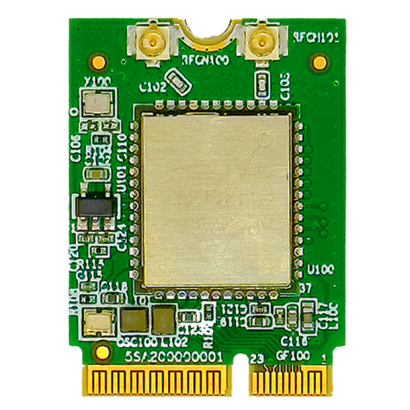

Specification

  • Product Number : 5SA100000002
  • Radio ASIC : Broadcom
  • Network Protocol : IEEE 802.11 ax/ ac/ n
  • Frequency Band : 2.4 / 5 / 6 GHz
  • Bandwidth : 20 / 40 / 80 MHz
  • Modulation : Up to 1024 QAM

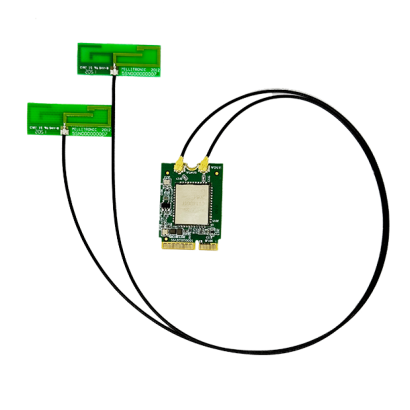

  • Antenna : 2 by 2 ( 50 Ohm)
  • Max PHY Rate : 1200 Mbps
  • Wide Temperature : -40 to 85 degree
  • Board Form Factor : M.2 2230
  • System Interface : Wi-Fi ( PCIe ), BT ( UART )
  • Reliability : 10 yrs, Up to 80% active
  • Default Driver : Linux
  • Customized Driver : Nvidia Jetson Series, Rockchip
  • Certification : FCC, CE
